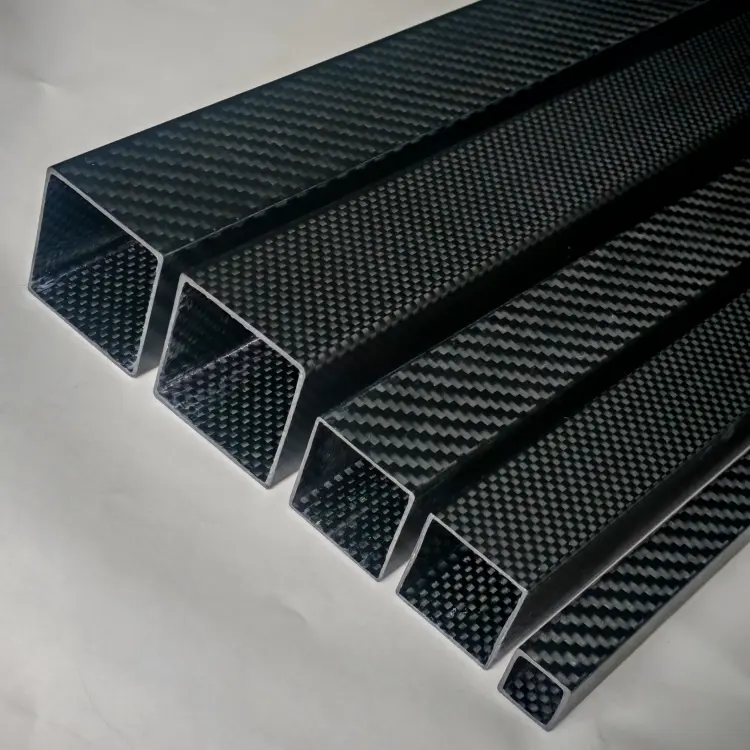

How Square Carbon Fiber Tubes Outperform Round Tubes in Structural Stiffness
From Moment of Inertia to Assembly Efficiency — A Technical Deep Dive
Author: Aohong Aerospace-Grade Carbon Fiber Technology Center
1. Key Conclusion First
Under equal perimeter, wall thickness, and fiber layup conditions, square carbon fiber tubes can achieve 1.5 to 2.1× higher bending stiffness compared to round tubes. In applications involving planar installations or directional loading, this advantage can exceed 3×.
2. Stiffness Formula Made Simple
Bending Stiffness ≈ Elastic Modulus (E) × Moment of Inertia (I)
- Round Tube: I = π(D⁴ – d⁴)/64
- Square Tube: I = (B⁴ – b⁴)/12
With the same outer perimeter (i.e., material usage), square tubes naturally have a higher moment of inertia. Moreover, they offer direction-dependent stiffness in two principal axes—ideal for load-specific structural optimization.
3. Equal-Perimeter Comparison Test
| Specification | Outer Perimeter | Wall Thickness | Ixx (cm⁴) | Iyy (cm⁴) | Linear Mass | Bending Stiffness Gain |
|---|---|---|---|---|---|---|
| Ø30 mm Round Tube | 94.2 mm | 2 mm | 2.01 | 2.01 | 220 g/m | Baseline |
| 25×25 mm Square Tube | 100 mm | 2 mm | 3.12 | 3.12 | 235 g/m | ↑ 55% |
| 30×20 mm Rectangular | 100 mm | 2 mm | 4.25 | 1.89 | 235 g/m | ↑ 111% (primary axis) |
4. Extra Gains in Directional Loading
- Robotic Joint Arms: Primarily loaded in the Z-direction; rectangular square carbon fiber tubes allow 90% of fibers to be oriented along the high-inertia axis — “reinforce where the stress goes”.
- H-Frame Drones: Flat faces of square tubes can bond directly to carbon plates, eliminating the stiffness loss from round tube → adapter → plate transitions. (Tested: overall modal frequency ↑ 18%)
- Camera Sliders: Racks on top, sliders on bottom — torsional stiffness ↑ 2.3×, frame jitter ↓ 42%.
5. Assembly Efficiency = Hidden Stiffness
5. Assembly Efficiency = Hidden Stiffness- Round Tubes require extra milling or adapters, introducing localized stress concentrations.
Square Carbon Fiber Tubes have built-in flat surfaces:
→ Bolt/glue area ↑ 40%
→ Connection stiffness ↑ 25–30% - Straightness inspection is easier:
- Square tubes: use quick 3-point platform alignment
- Round tubes: require rotational V-block inspection — error magnified by 1.8×
6. Layup Techniques That Maximize the Advantage
- Square tubes can reinforce all four corners with 0° UD (unidirectional) strips, achieving a “box beam” effect — further increasing bending stiffness by 12–15%
- Round tubes are prone to fiber slippage during hoop winding
- Square tube corners can be locally thickened without increasing the perimeter — yielding “same weight, higher stiffness”
7. Conclusion
Square carbon fiber tubes don’t just offer a mathematically superior moment of inertia—they unlock strategic advantages in directional strength, assembly precision, and localized reinforcement. When your project demands gram-level weight control and sub-millimeter deformation resistance, square tubing becomes the shortcut to doubling structural stiffness.
