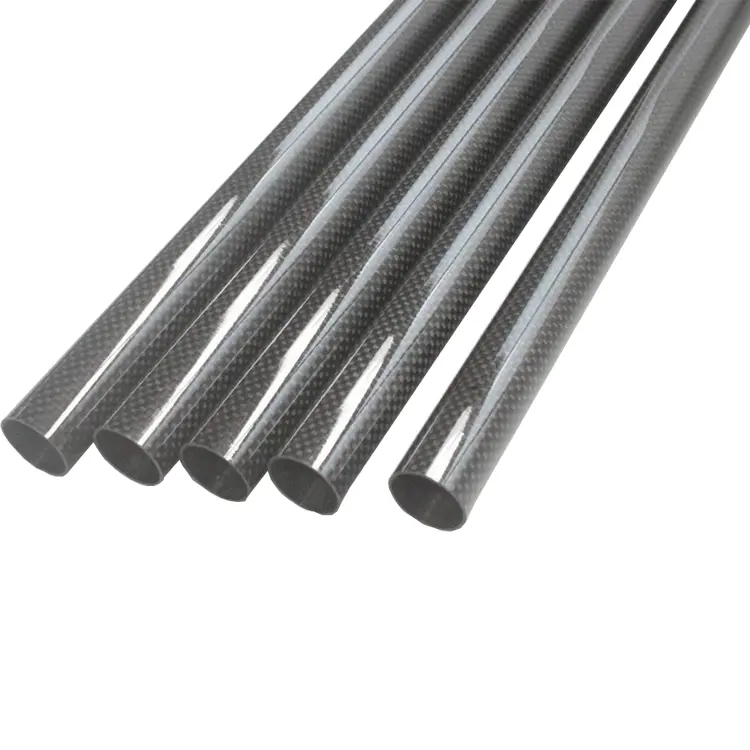

True 3K Woven Carbon Fiber Tube
Where lightweight strength meets visible precision – genuine 3K twill weave as the outer surface.
Core Advantages (At a Glance)
- Authentic 3K Weave: 3,000 filaments per tow, zero broken yarns/discoloration.
- Glossy/Matte Options: UV-resistant coating, fade-proof for 2+ years outdoors.
- Production-Grade Tolerance: ±0.1 mm, ready for assembly upon delivery.
- Zero Post-Processing: Eliminates secondary painting, saving time & cost.
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Density | 1.6 g/cm³ | With resin |
| Tensile Strength | ≥800 MPa | Tube-axis direction |
| Elastic Modulus | ≥90 GPa | Tube-axis direction |
| Operating Temp | −40℃ ~ +120℃ | Long-term use |
| Surface Resist. | 10³–10⁴ Ω | Anti-static properties |
Stock Sizes (1.5 mm Wall Thickness)
| OD (mm) | Length (mm) | Weight (g) | Applications |
|---|---|---|---|
| 16 | 500 | 55 | FPV drone arms |
| 20 | 500 | 70 | Gimbal extension poles |
| 25 | 750 | 130 | Camera slider supports |
| 30 | 1000 | 200 | Mic booms/light stands |
| 35 | 1000 | 240 | Racing drone center wing tubes |
| 40 | 1000 | 280 | E-scooter steering columns |
Custom Processing
- Chamfered ends, C-slots, aluminum thread inserts, laser logos.
- Three finishes: Matte black/Glossy black/Natural 3K transparent.
Ordering Guide
- Stock Items: Ships same-day, single-tube orders accepted.
- Custom Sizes: OD 12–50 mm, Length ≤1500 mm. Prototypes in 3–5 days.
Offline Contracts
All sales of our carbon fiber materials are conducted through offline contract agreements to ensure each order precisely meets your specifications, compliance requirements, and agreed payment terms. Please contact our sales team to initiate the contract process and discuss project details.
| name | value | unitCode | unitText |
|---|---|---|---|
| MOQ | 50 | PCS | |
| Lead Time | 5–20 | business days | |
| Material | Carbon Fiber | ||
| Size | Customizable (inner diameter / outer diameter / length) |
