Flexible Carbon Fiber Sheets (CFRP Flex Plate) — Bendable 10⁵ Times · 360° Surface Conformity · Lightweight & Conductive Integration
1. Product Definition

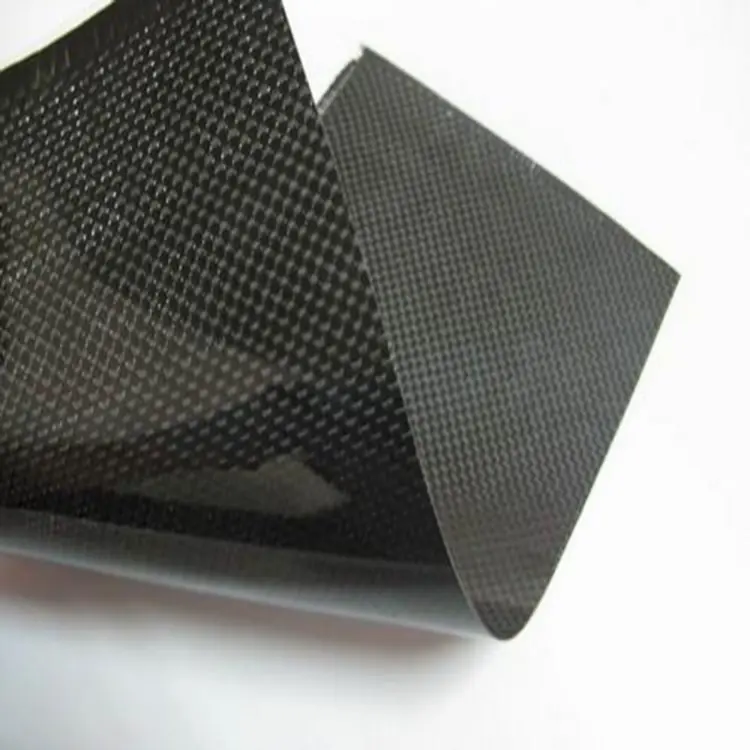

Unlike traditional rigid carbon laminates, our flexible carbon fiber sheets are engineered using ultra-thin unidirectional tape reinforced with high-toughness epoxy or TPU elastomers. With thicknesses ranging from 0.05–0.5 mm, this composite structure combines the high strength of carbon fiber with the flexibility of polymer matrices. It can be tightly rolled into a Φ20 mm cylinder without cracking—ideal for curved surface bonding, repeated flexing, and dynamic lightweight applications.
2. Key Features
- Ultra-flexible: 90° bend at R=5 mm for 100,000 cycles without cracking.
- Featherlight & Thin: Areal density of 60–400 g/m², 90% lighter than stainless steel foils of the same thickness.
- Conductive & Shielding: Surface resistivity 0.02–0.1 Ω/sq; EMI shielding efficiency 60–80 dB.
- Wide Temperature Range: From −55°C to +150°C (TPU matrix) or up to +200°C (epoxy elastomer).
- Thermoformable: Conforms to complex curves under 150°C & 0.3 MPa in 3 minutes, holds shape after cooling.
3. Material Structure
| Layer | Specification | Function |
|---|---|---|
| Surface Protection | 12 μm Matte PI Film | Scratch resistance, insulation, easy to clean |
| Conductive/Load Layer | 0.5–3K Ultra-thin UD Tape, 0°/90° | Mechanical strength & electrical conductivity |
| Flexible Matrix | Tough Epoxy or TPU, 80–120 μm | Absorbs bending stress, prevents delamination |
| Adhesive Backing (optional) | 3M 467MP/9080A or Heat-Resistant Silicone | Peel-and-stick installation, no mechanical fasteners needed |
4. Available Stock Sizes
| Thickness (mm) | Areal Weight (g/m²) | Width (mm) | Roll Length (m) | Max Sheet Size (mm) | Typical Applications |
|---|---|---|---|---|---|
| 0.05 | 60 | 250 | 100 | 500×500 | Curved antenna reflectors, flexible display backplanes |
| 0.08 | 95 | 300 | 100 | 600×600 | Wearable EMG electrode substrates |
| 0.10 | 120 | 300 | 50 | 600×1200 | Foldable drone wing skins |
| 0.15 | 180 | 500 | 50 | 1000×1000 | Robot joint encapsulation |
| 0.20 | 240 | 500 | 30 | 1200×1200 | Automotive aerodynamic reinforcements |
| 0.30 | 360 | 600 | 30 | 1500×1500 | Foldable marine radar domes |
| 0.50 | 400 | 600 | 20 | 1500×3000 | Large-scale collapsible solar panel frames |
Customization: Thickness 0.03–1.0 mm, width up to 1.2 m, roll length up to 300 m. Laser-cut 2D shapes available.
5. Mechanical & Electrical Properties
| Property | 0.10 mm Sheet | 0.30 mm Sheet |
|---|---|---|
| Tensile Strength (Longitudinal) | 800 MPa | 1500 MPa |
| Modulus (Longitudinal) | 80 GPa | 120 GPa |
| 90° Bend Radius | 3 mm | 5 mm |
| Surface Resistivity | 0.05 Ω/sq | 0.02 Ω/sq |
| EMI Shielding (30 MHz–3 GHz) | 65 dB | 80 dB |
| Flame Rating | UL94-V0 | UL94-V0 |
6. Post-Processing & Integration
- Laser Cutting: ±0.05 mm accuracy, min. hole size 0.3 mm, no burning edges.
- Thermoforming: Bonds to PC, ABS, PMMA, and aluminum honeycomb under R≥10 mm curves.
- Electrical Connectivity: Compatible with laser-welded nickel tabs, crimped copper foils, ZIF FPC cables.
- Sensor Embedding: Copper mesh or silver paste circuits can be embedded for heating or sensing.
7. Typical Applications
- Consumer Electronics: Foldable phone hinge plates, AR glasses flexible housings
- Drones: Folding wing skins, retractable tail booms
- Automotive: Flexible grille linkages, aerodynamic reinforcement strips
- Medical: MRI-safe flexible electrodes, robotic rehabilitation joints
- Energy: Flexible solar panel backplanes, supercapacitor current collectors
- Defense: Foldable antenna reflectors, lightweight mast coverings
8. Installation & Maintenance
- Peel & Stick: Adhesive peel strength 1.2 N/cm, residue-free from −40°C to +150°C
- Curved Bonding: Use heat gun at 120°C for 5 sec to fit surfaces R≥10 mm
- Cleaning: Wipe with isopropyl alcohol, surface 2H hardness resists scratches
9. Ordering & Delivery
- MOQ: 1 m² for stock items; 50 m² for rolls, ships in 3–5 days
- Packaging: Rolls in PE film + cartons; sheets in foam wrap + carton/wooden box
Offline Contracts
All sales of our carbon fiber materials are conducted through offline contract agreements to ensure each order precisely meets your specifications, compliance requirements, and agreed payment terms. Please contact our sales team to initiate the contract process and discuss project details.
| name | value | unitCode | unitText |
|---|---|---|---|
| MOQ | 50 | PCS | |
| Lead Time | 5–20 | business days | |
| Material | Carbon Fiber | ||
| Size | Customizable (thickness / width / length) |
