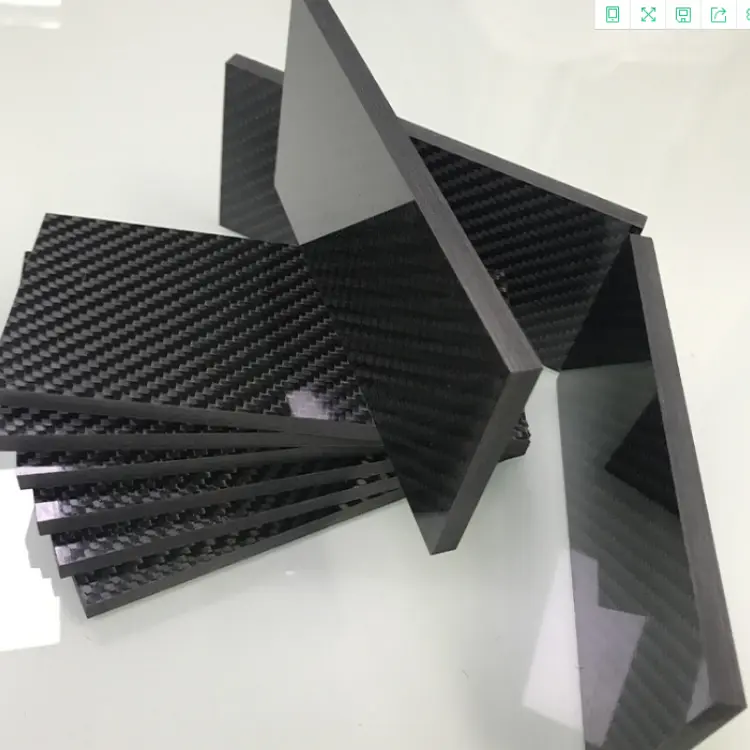

Carbon Fiber Panels and Veneers - Image 2

Elevate your designs with our premium carbon fiber panels and carbon fiber veneers, engineered for ultra‑lightweight performance and exceptional rigidity.

• Superior Strength: High tensile modulus and impact resistance for long‑lasting durability.

• Precision Finish: Smooth matte or glossy options with ±0.1 mm thickness tolerance.

• Customizable Sizes: Ideal for complex contours and tight‑tolerance assemblies.

Perfect for automotive interiors, aerospace components, and architectural accents—delivering weight savings without compromise.

Request your custom quote today from our ISO 9001‑certified factory and experience factory‑direct quality you can trust.

WhatsApp Request a quote online

Carbon Fiber Panels & Carbon Fiber Veneers – Product Portfolio 2025
“From 0.2 mm decorative veneers to 60 mm structural panels — one-stop coverage”

1. Product Family Overview

Panels (Structural Boards): Solid or sandwich cores for primary load‑bearing.
Veneers (Decorative Sheets): Ultra‑thin 0.2–2 mm laminates for surface finish or local reinforcement.
Panel‑Veneer Composites: 2 mm carbon face + aluminum/PMI/aramid honeycomb core — lightweight yet rigid.

2. Material Systems

Fibers: 3K twill/plain weave, 12K UD, aramid blends; optional copper‑mesh EMI shielding.
Resins: Epoxy (Tg 120 °C / 180 °C), UL94‑V0 flame‑retardant epoxy, BMI, PEKK thermoplastic.
Cores: None; 6 mm aluminum honeycomb; 8 mm aramid honeycomb; 10–50 mm PMI foam.

3. Mechanical Properties (2 mm Solid Panel)

Property	Value
Density	1.55–1.60 g/cm³
Flexural Strength	650–700 MPa
Flexural Modulus	120–140 GPa
Interlaminar Shear	80–90 MPa
Service Temperature	−40 °C to +200 °C

4. Standard Size Matrix

A. Structural Panels

Thickness (mm)	Panel Size (mm)	Notes
0.5	500 × 500 / 500 × 1000	Drone bulkheads, auto trims
1.0	600 × 1200	Robot housings
2.0	1000 × 1000 / 1200 × 2400	Fixtures, racing floor pans
3.0	1200 × 2400	Medical beds, optical decks
4.0–10	1200 × 2400	Ship cabin walls, battery lids
12–60	1000 × 2000	CNC‑machined beams & ribs

B. Decorative Veneers

Thickness (mm)	Veneer Size (mm)	Example Uses
0.2	400 × 500 / 500 × 500	Phone shells, earphone housings
0.3	500 × 600 / 600 × 1200	Laptop lids
0.5	500 × 1200 / 1220 × 2440	Auto dashboards, yacht interiors
1.0	1220 × 2440	Exhibit props, furniture veneers

C. Panel‑Veneer Sandwich

Face + Face (mm)	Core (mm)	Total (mm)	Size (mm)	Use Case
1.0 + 1.0	Al honeycomb 6	8	1200 × 2400	High‑speed rail racks
1.5 + 1.5	PMI 10	13	1000 × 2000	Satellite solar panels
2.0 + 2.0	Aramid 15	19	1500 × 3000	Racing boat decks

5. Surface Finishes

Gloss: High‑clarity epoxy + mirror polish, 90–95 GU.
Matte: Micro‑matte coat, 5–10 GU, fingerprint‑resistant.
Textures: 3K twill, 3K plain, UD black, copper‑mesh.
Colors: Black, silver, ice blue, flame red, holographic gradient (digital print).

6. Secondary Processing Services

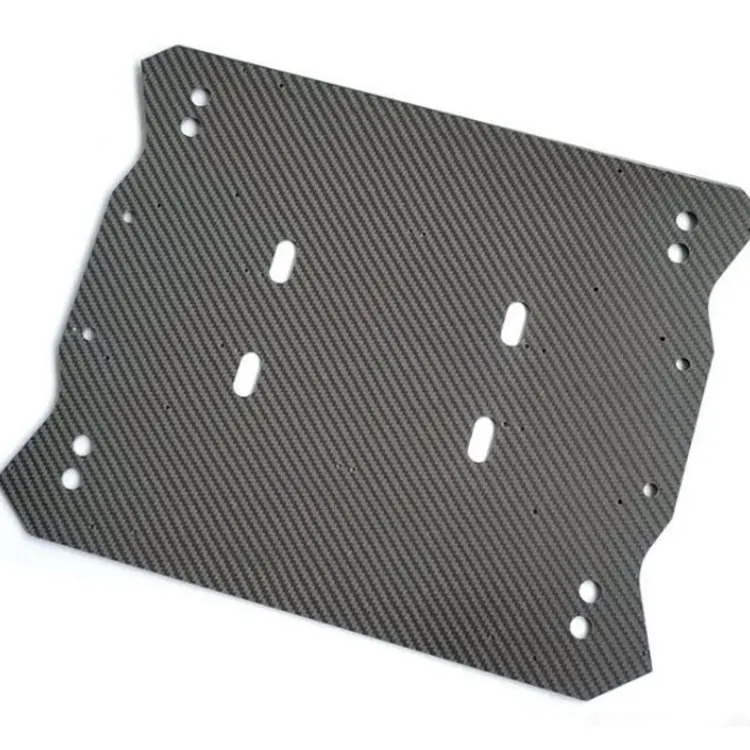

5‑Axis CNC: Slots, cutouts, chamfers R0.5–R5.
Waterjet Cutting: Complex profiles, min. spacing 3 mm.
Embedded Inserts: Aluminum/titanium threaded sleeves, grounding copper posts.
3D Thermoforming: R ≥ 50 mm single‑step curved shapes.
Laser Engraving: Logos, scales, QR codes.

7. Industry Applications Snapshot

Industry	Gloss Examples	Matte Examples
Automotive	High‑gloss spoilers, trim accents	Non‑reflective instrument overlays
Consumer Electronics	Gaming PC side windows, headphone shells	VR headset light shields
Medical	Cosmetic device panels	MRI‑safe cart panels
Marine	Superyacht deck trim	Anti‑glare helmsman panels
Exhibits	Luxury display cabinets	Museum darkroom showcases

8. Ordering & Delivery

MOQ: 1 sheet in stock; custom orders start at 10 sheets.
Lead Times: Stock ships in 24 h; custom CNC 3–7 days; sandwich boards 10–12 days.
Packaging: Protective film → foam separators → wooden crate.
Certifications: Includes material reports, RoHS, REACH, UL94‑V0, ISO 9001.

Offline Contracts

All sales of our carbon fiber materials are conducted through offline contract agreements to ensure each order precisely meets your specifications, compliance requirements, and agreed payment terms. Please contact our sales team to initiate the contract process and discuss project details.

name	value	unitCode	unitText
MOQ	50	PCS
Lead Time	5–20		business days
Material	Carbon Fiber
Size	Customizable (thickness / width / length)

Resources

Technical Data Sheet – Carbon Fiber Panels and Veneers

ISO 9001:2025 Certification

CAD Resource Pack

Company e‑Brochure

From 0.2 mm glossy veneers to 60 mm load‑bearing panels, our Carbon Fiber Panels & Veneers deliver lightweight form and function in every application.

Construction	Pultruded Panel / Prepreg Laminate / Vacuum Infusion
Fiber Type	3K Twill / 3K Plain Weave / UD (1K–12K optional)
Resin System	Epoxy (standard) / HighTG Epoxy / Vinyl Ester
Thickness Range	Panels: 1 mm – 25 mm; Veneers: 0.2 mm – 1.0 mm
Standard Panel Sizes	500×500 mm, 500×1000 mm, 1000×1000 mm, 1200×2400 mm
Density	1.55 g/cm³ (± 0.05)
Tensile Strength	≥ 600 MPa
Coefficient of Thermal Expansion	−0.5 × 10⁻⁶ /°C
Operating Temperature	−40 °C to +120 °C
Fire Resistance	UL 94 V0 option
Water Absorption	≤ 0.2 % (24 h, ASTM D570)

Product Customization Process

Requirement Gathering: Customer submits application scenario, load conditions, dimensions, material specs and drawings.
Technical Evaluation: Our engineers assess feasibility, select fiber grade, resin system, manufacturing method and estimate cost.
3D Design & Simulation: Create CAD model from client drawings and perform FEA for strength and weight optimization.
Rapid Prototyping: Deliver prototype within 3–7 days, including pultrusion/filament winding and necessary CNC machining.
Sample Validation: Client inspects prototype dimensions, appearance and performance, then provides feedback.
Tooling/Fixture Confirmation: Modify and approve molds or fixtures based on prototype, finalizing production setup.
Pilot Production: Conduct pilot run to verify process stability and re-test performance.
Mass Production: Proceed with full-scale manufacturing according to approved specs and quantities.
Quality Inspection: Perform 100% visual, dimensional checks and ultrasonic NDT; issue inspection reports and material certificates.
Packaging & Shipment: Pack per client’s requirements (bubble-wrap, reinforced cartons or crates) and arrange international shipment.
After-sales Support: Offer installation guidance, maintenance advice and secondary processing services.
