3K Twill Weave Carbon Fiber Fabric
— Iconic Herringbone Pattern · Superior Wet‑Out · Versatile Prepreg Base Material
1. Product Concept

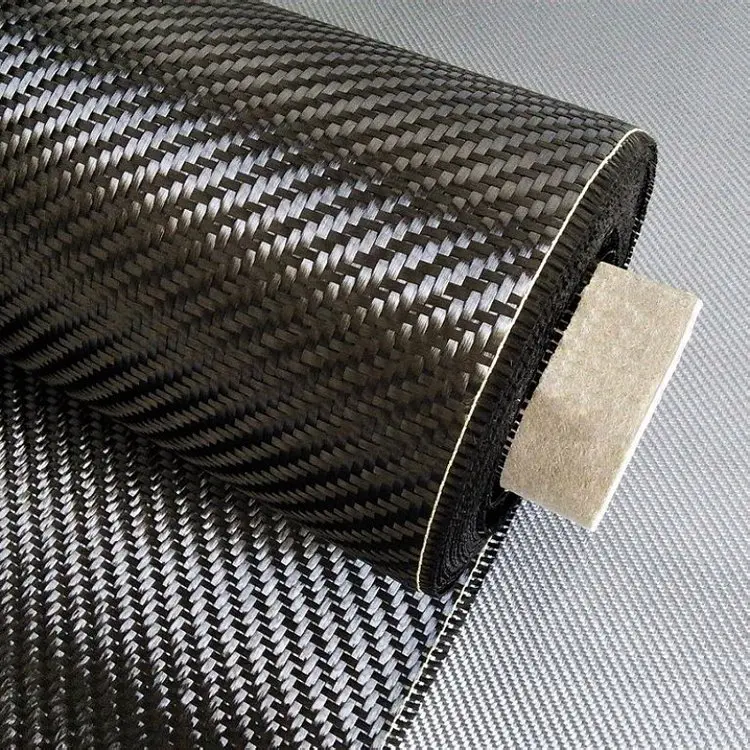

Our 3K twill weave carbon fiber fabric uses 3 000‑filament PAN‑based tow woven in a 2×2 twill pattern: each warp yarn passes over two weft yarns, forming a 45° “herringbone” texture. This weave delivers outstanding 0°/90° and ±45° shear strength, excellent drapability for hand lay‑up, vacuum bagging, RTM, and prepreg processes, and a striking 3D appearance.
2. Key Advantages
- High Specific Strength: ≥ 3500 MPa tensile strength at only 1.79 g/cm³ density.
- Excellent Conformability: 15–20% greater elongation vs. plain weave, wraps complex curves without wrinkling.
- Wide Resin Compatibility: Epoxy, vinyl ester, polyester, phenolic—wet‑out in ≤ 60 s at 25 °C.
- Premium Finish: Deep black glossy twill, suitable as a decorative surface without secondary coating.
- Weather & Flame Resistance: UV‑stable formula; UL94‑V0 option; outdoor use up to 5 years without chalking.
3. Technical Specifications
| Specification | 200 g/m² | 240 g/m² | 600 g/m² |
|---|---|---|---|
| Thickness | 0.25 mm | 0.32 mm | 0.64 mm |
| Warp Density | 5 ends/cm | 6 ends/cm | 3 ends/cm |
| Weft Density | 5 ends/cm | 6 ends/cm | 3 ends/cm |
| Tensile Strength | ≥ 3500 MPa (200 g) | ≥ 3500 MPa | ≥ 3500 MPa |
| Elastic Modulus | ≥ 230 GPa | ≥ 230 GPa | ≥ 230 GPa |
| Service Temperature | −50 °C to 300 °C (post‑cure) | same | same |
4. Stock Widths & Roll Lengths
| Width (cm) | Length (m) | Weight | Thickness | Applications |
|---|---|---|---|---|
| 100 | 100 | 200 g/m² | 0.25 mm | Phone & headphone shells, small UAV skins |
| 120 | 100 | 200 g/m² | 0.25 mm | Auto interior panels, spoiler reinforcements |
| 150 | 50 | 200 g/m² | 0.25 mm | Motorcycle fairings, yacht trim |
| 100 | 100 | 240 g/m² | 0.32 mm | Model aircraft wings, ski cores |
| 150 | 50 | 240 g/m² | 0.32 mm | Racing car bodies, sled skins |
| 100 | 50 | 600 g/m² | 0.64 mm | Industrial molds, large drone spars |
| 1500 | 50 | 210 g/m² | 0.30 mm | Full‑vehicle wrap applications |
Customizable: Width 10–200 cm; roll length 1–300 m; weight 120–640 g/m².
5. Application Examples
- Aerospace: Wing skins, rudders, rocket casings, satellite solar panels.
- Automotive: Hoods, spoilers, interior trims, underbody shields.
- Sports Equipment: Bike frames, fishing rods, skis, baseball bats.
- Structural Reinforcement: Concrete beams, bridge pylons, tunnel linings.
- Consumer Electronics: Laptop shells, game controllers, headset frames.
6. Resin & Curing Recommendations
| Resin System | Usage Rate (g/m²) | Cure Conditions | Notes |
|---|---|---|---|
| Epoxy Hand‑Lay‑Up | 200–250 | 25 °C 24 h + 60 °C 2 h | General‑purpose, high strength |
| Epoxy Prepreg | 38% resin content | 120 °C 90 min | Best visual consistency |
| Vinyl Ester | 220–270 | 25 °C 4 h + 80 °C 2 h | Chemical & heat resistance |
| Polyester | 180–220 | 25 °C 45 min | Cost‑effective for large parts |
7. Packaging & Logistics
- Single Roll: Wrapped in PE film → kraft paper core → carton
- Pallet: Shrink‑wrapped with corner protectors → fumigated wooden pallet
- MOQ: Stock 1 m; custom orders from 100 m; lead time 3–5 days.
Offline Contracts
All sales of our carbon fiber materials are conducted through offline contract agreements to ensure each order precisely meets your specifications, compliance requirements, and agreed payment terms. Please contact our sales team to initiate the contract process and discuss project details.
| name | value | unitCode | unitText |
|---|---|---|---|
| MOQ | 50 | PCS | |
| Lead Time | 5–20 | business days | |
| Material | Carbon Fiber | ||
| Size | Customizable (width / length / areal weight) |
Resources
3K twill weave carbon fiber fabric—in just 0.25 mm thickness, we weave steel‑like strength, aluminum‑like lightness, and premium aesthetics into one versatile prepreg base.
