Plain Weave Carbon Fiber Fabric
— Classic “Checkerboard” Texture · Bidirectional Balance · Dual‐Use for Aesthetics & Structure
1. Product Definition
Plain weave carbon fiber fabric uses the fundamental “over‑under” interlacing of warp and weft fibers to create a uniform checkerboard pattern. Its dense fiber arrangement and flat surface deliver higher shear rigidity and minimal fiber slippage compared to twill weaves, making it the most versatile reinforcement for hand lay‑up, vacuum bagging, RTM, and autoclave processes.
2. Fiber & Specification Matrix
| Tow Size | Areal Weight (g/m²) | Nominal Thickness (mm) | Width (cm) | Roll Length (m) | Typical Applications |
|---|---|---|---|---|---|
| 1K | 80 | 0.08 | 100 / 150 / 200 | 50–100 | Scale models, headphone shells, phone backs |
| 1K | 120 | 0.12 | 100–300 | 100 | Mini UAV skins, electronic enclosures |
| 3K | 160 | 0.16 | 100 / 150 / 300 | 50–100 | Auto interior trims, sporting goods |
| 3K | 200 | 0.20 | 100–1500 | 100 | Model aircraft wings, body panels |
| 3K | 240 | 0.24 | 100–300 | 50 | Industrial jigs, marine bulkheads |
| 6K | 320 | 0.32 | 100–300 | 50 | Structural reinforcement, fan blades |
| 12K | 400 | 0.40 | 100–300 | 50 | Large UAV spars, drive shafts |
| 12K | 600 | 0.60 | 100–300 | 50 | Concrete bridge wraps, tank linings |
Custom Options: Widths 10–300 cm, lengths 1–500 m, weights 80–640 g/m².
3. Technical Data (3K – 200 g/m² Example)
| Property | Value |
|---|---|
| Density | 1.79 g/cm³ |
| Warp Tensile Strength | ≥ 800 N/25 mm |
| Weft Tensile Strength | ≥ 600 N/25 mm |
| Elastic Modulus | 230 GPa |
| Resin Wet‑Out Time (Epoxy) | ≤ 60 s @ 25 °C |
| Service Temperature | −50 °C to +300 °C |
4. Process Compatibility
- Hand Lay‑Up: Epoxy/vinyl ester/polyester; recommended resin 250–300 g/m².
- Vacuum Bagging: 0.8–1 bar vacuum, void content < 1%.
- RTM / Resin Infusion: Dense plain weave ensures uniform flow in complex molds.
- Prepreg: 38 % resin content available; cure at 120 °C for 90 min.
5. Appearance & Post‑Processing

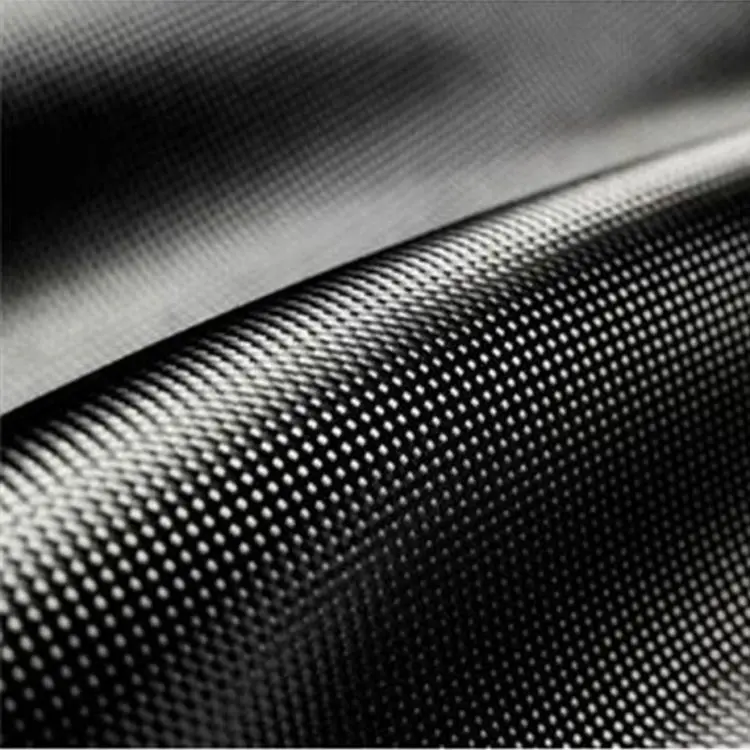

- Texture: Crisp checkerboard pattern for decorative appeal.
- Colors: Standard black; optional metallic gray, ice blue, flame red via digital printing.
- Protection: PE film backing to prevent transport scratches.
- Cutting: Laser trim tolerance ± 0.5 mm; minimum hole Ø 2 mm.
6. Application Panorama
- Aerospace: Wing skins, rudders, rocket fairings, satellite solar panels.
- Automotive: Hoods, spoilers, interior trim, skid plates.
- Sports Equipment: Bike frames, fishing rods, skis, baseball bats.
- Structural Reinforcement: Beams, columns, bridge wraps—30–50 % load increase.
- Consumer Electronics: Laptop lids, phone backs, headset frames.
7. Packaging & Delivery

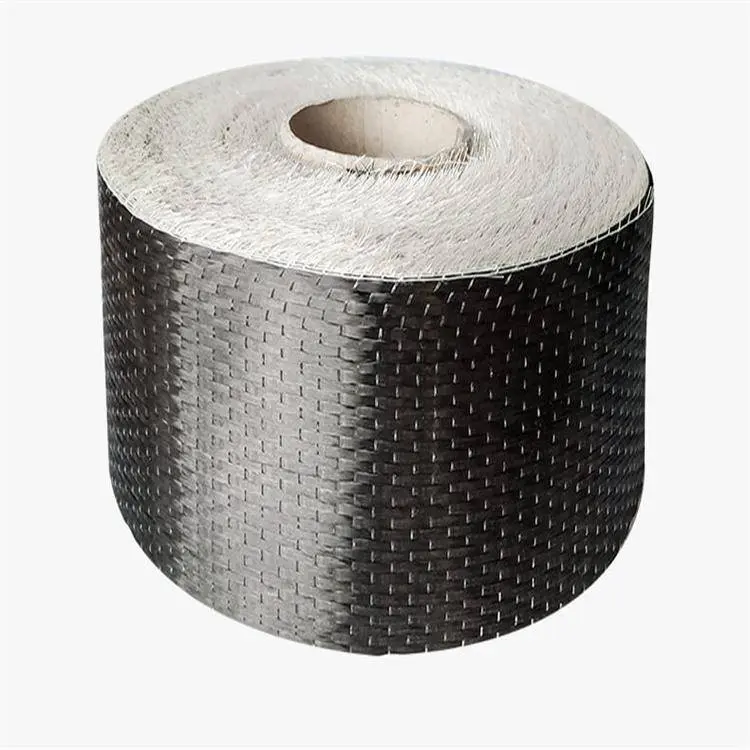

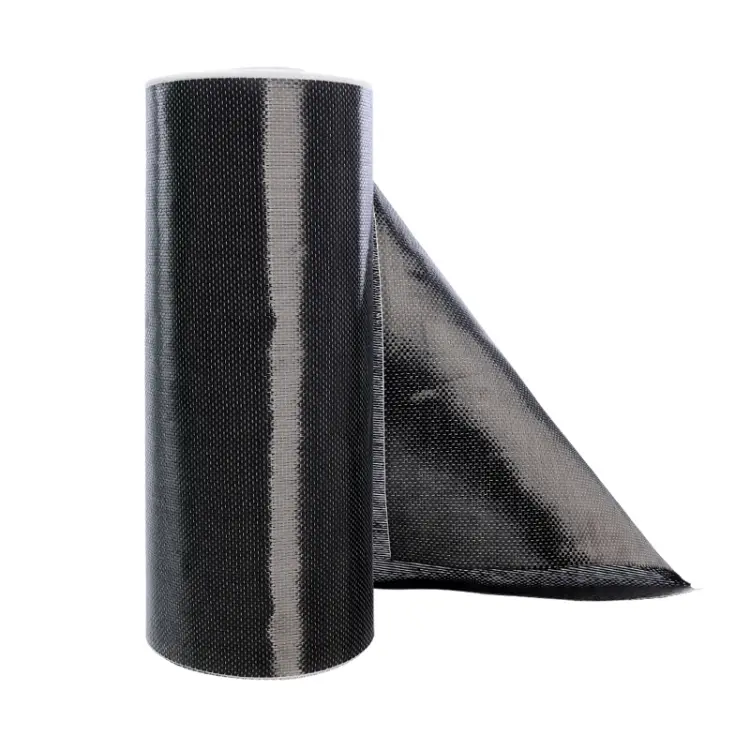

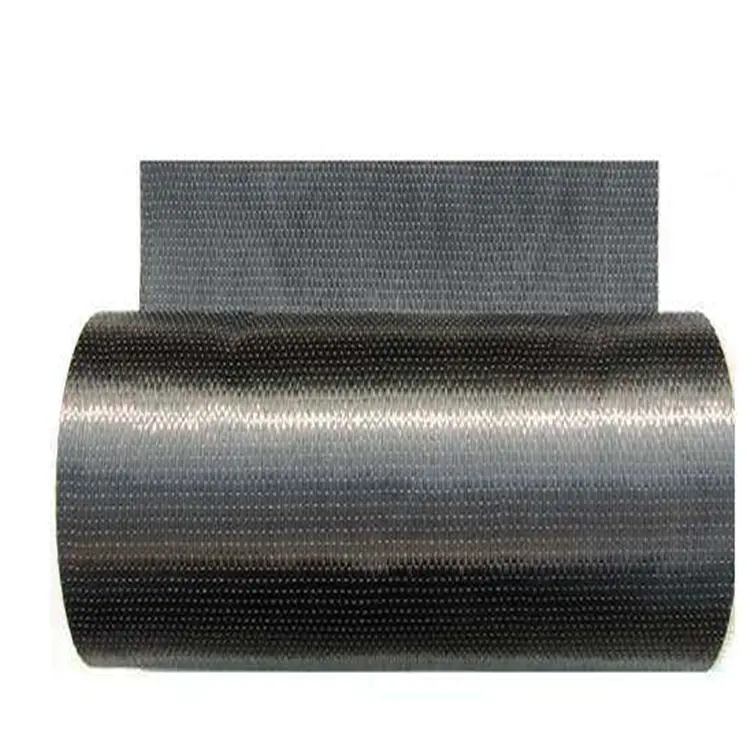

- Single Roll: PE film wrap → kraft tube → carton.
- Pallet: Stretch wrap + corner protectors → fumigated pallet (sea‑ready).
- MOQ: Stock 1 m; custom from 100 m; lead time 3–5 days.
- Certifications: Includes ASTM/EN/GB reports, RoHS, REACH.
Offline Contracts
All sales of our carbon fiber materials are conducted through offline contract agreements to ensure each order precisely meets your specifications, compliance requirements, and agreed payment terms. Please contact our sales team to initiate the contract process and discuss project details.
| name | value | unitCode | unitText |
|---|---|---|---|
| MOQ | 50 | PCS | |
| Lead Time | 5–20 | business days | |
| Material | Carbon Fiber | ||
| Size | Customizable (width / length / areal weight) |
Resources
Plain weave carbon fiber fabric—weaving the timeless checkerboard into a modern lightweight miracle.
